Saxitoxin

Background

Saxitoxins (mytilotoxin; shellfish toxins; STX, PSP) are neurotoxic poisons produced naturally by certain types of planktonic algae (dinoflagellates) (Wiese et al., 2010). The consumption of shellfish (e.g. mussels, butter clams and oysters) that have accumulated the toxin when feeding on these organisms may cause paralytic shellfish poisoning in humans (mytilotoxism). It should be noted that the concentration of the toxin can be higher still when algal blooms occur. Another source of PSP toxins are freshwater cyanobacteria (e.g. Aphanizomenon flos-aquae). The first complete chemical analysis and synthesis of saxitoxin was conducted by Kishi in 1977. Given that it is extremely difficult to synthesise, saxitoxin (and its derivatives) cannot be readily procured.

Saxitoxin as a bioweapon

Classified as Agent TZ (chemical weapon designation), saxitoxin is considered to have chemical weapon potential due to its high toxicity. Researchers have shown that it would be possible to spike ammunition with saxitoxin, thus ensuring the immediate death of the victim. Saxitoxin is much more poisonous than the synthetic nerve gas sarin and, like the phytotoxin ricin, is also classified as a biological weapon. Saxitoxin is listed in the Chemical Weapons Convention (Schedule 1). The toxin also appears in the Annex (War Weapons List) to the German War Weapons Control Act.

Chemical structure and properties

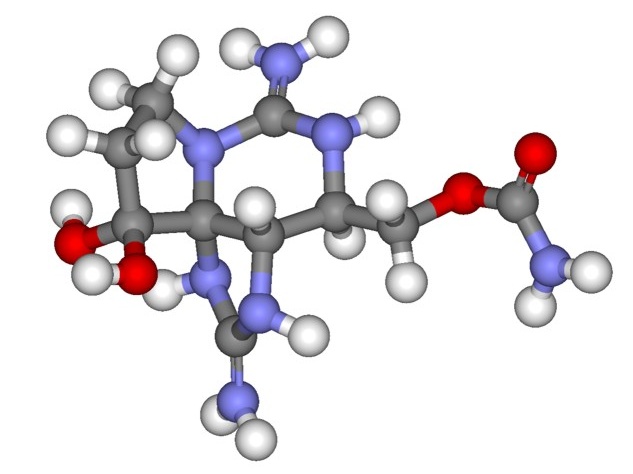

Fig. 1: Chemical structure of saxitoxin Fig. 1: Chemical structure of saxitoxin
The best known PSP toxin is saxitoxin. Further 20 PSP toxins which have been isolated to date, show a high structural similarity to saxitoxin. PSP toxins are soluble in water, methanol and ethanol, but not in other organic solvents. They remain stable in slightly acidic environments, but tend to oxidise when exposed to alkaline conditions.

Toxicity

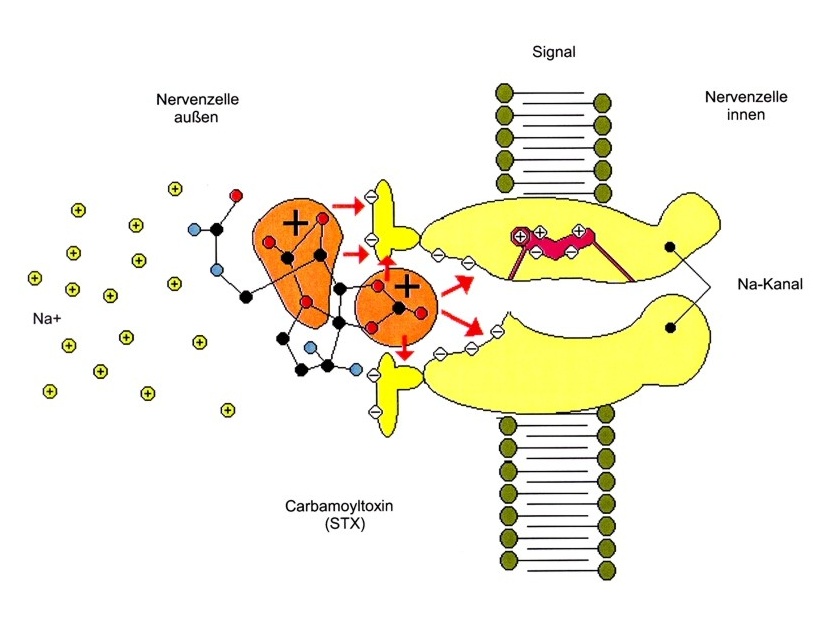

Fig. 2: Model of how PSP toxins bind to the surface of excitable nerve cell membranes Fig. 2: Model of how PSP toxins bind to the surface of excitable nerve cell membranes
Saxitoxin (STX) is a powerful neurotoxin. Like tetrodotoxin, STX binds to the sodium channels in nerve cells, thereby blocking the influx of sodium ions (Fig. 2). A single STX molecule is enough to block one sodium channel. The two guanidine sub-structures present in saxitoxin must be protonated. The toxicity of saxitoxin is much greater than that of synthetic neurotoxins. Saxitoxin is equally toxic as ricin.

Analysis

A variety of biological, biochemical and chemical procedures can be used to analyse saxitoxin (Humpage et al., 2010). These can be divided into two groups: non-chromatographic and chromatographic. The first group includes bioassays, immunoassays and fluorimetric assays. However, these are only capable of producing a summary identification of several PSP toxins (total toxicity). However, over the last 15 years, highly sensitive chromatographic procedures have been developed which make it possible to identify individual compounds with greater precision. Over time, the HPLC method, which uses fluorescence detection, has become the standard procedure (DIN EN 14526).

References

Wiese M, D'Agostino PM, Mihali TK, Moffitt MC, Neilan BA. Neurotoxic alkaloids: saxitoxin and its analogs. Mar Drugs. 2010 Jul 20;8(7):2185-211. Review.

Humpage AR, Magalhaes VF, Froscio SM. Comparison of analytical tools and biological assays for detection of paralytic shellfish poisoning toxins. Anal Bioanal Chem. 2010 Jul;397(5):1655-71. Epub 2010 Jan 26. Review.


DIN EN 14526: Foodstuffs - Determination of saxitoxin-group toxins in shellfish - HPLC method using pre-column derivatization with peroxide or periodate oxidation; German version EN 14526:2017
